Bariatric Shower Commode Wheeler

We have aimed at designing the best shower commode wheeler on the market. It is designed for easy access, independence, safety and on the caregiver terms. The 24” rear wheels provide more directional stability and smooth pushing.


Ideal use for…

– Bariatric users in hospitals, bariatric departments, institutions or at home.

Description

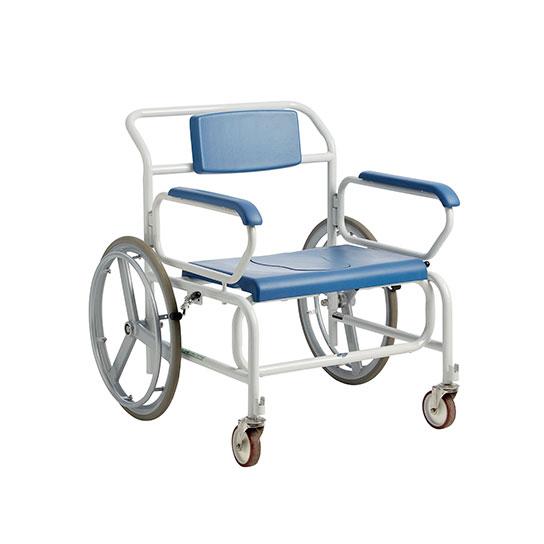

Bariatric Shower Commode Wheeler

Bariatric Shower commode wheeler is designed to help a bariatric user weighing up to 325 kg during transfers to and from the bathroom, in the shower, and during lavatory use

Construction

The inside width of the Shower Commode Wheeler is 61/71 cm, but using a five cm high PU foam seat and seven cm free space to the armrests allows the body mass to fall down, instead of fading out to the sides.

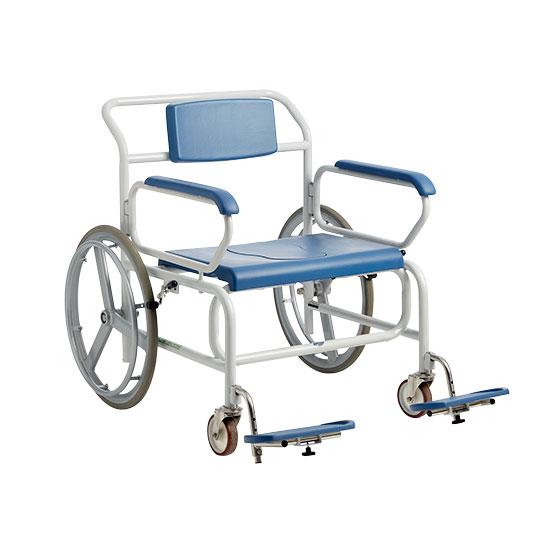

The footrest can carry 100 kg each and is also side and width adjustable. The makes access to intimate hygiene possible. Moreover people with the tissue placed on the inside of their leg can sit with legs apart (up to 110 cm) and still have foot support. The footrest is covered with PU foam.

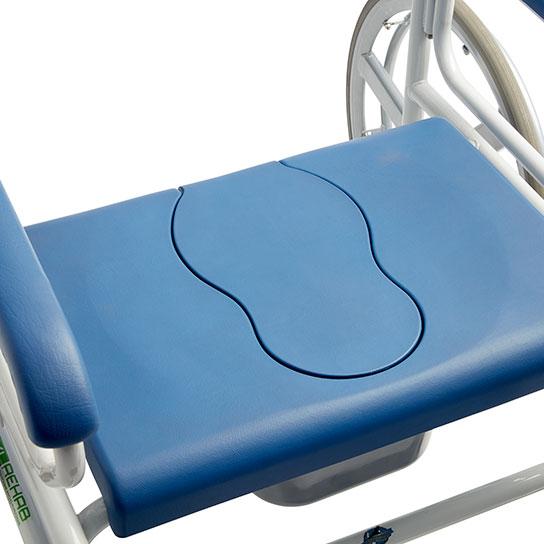

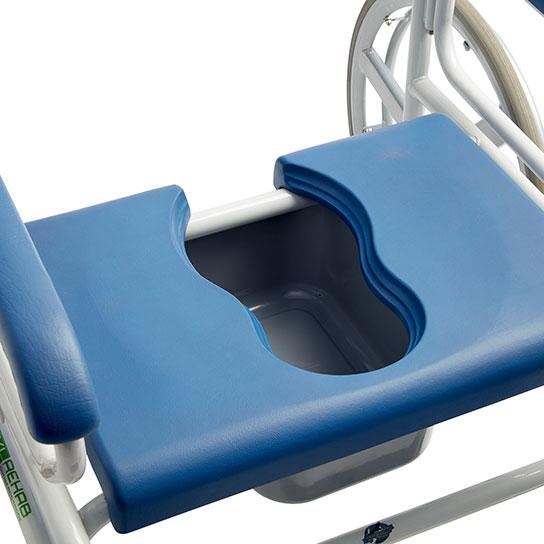

The commode wheeler has a split toilet seat, a long open hole measuring 44 cm and 22 cm at the widest point. It eases access for caregivers and avoids incidents.

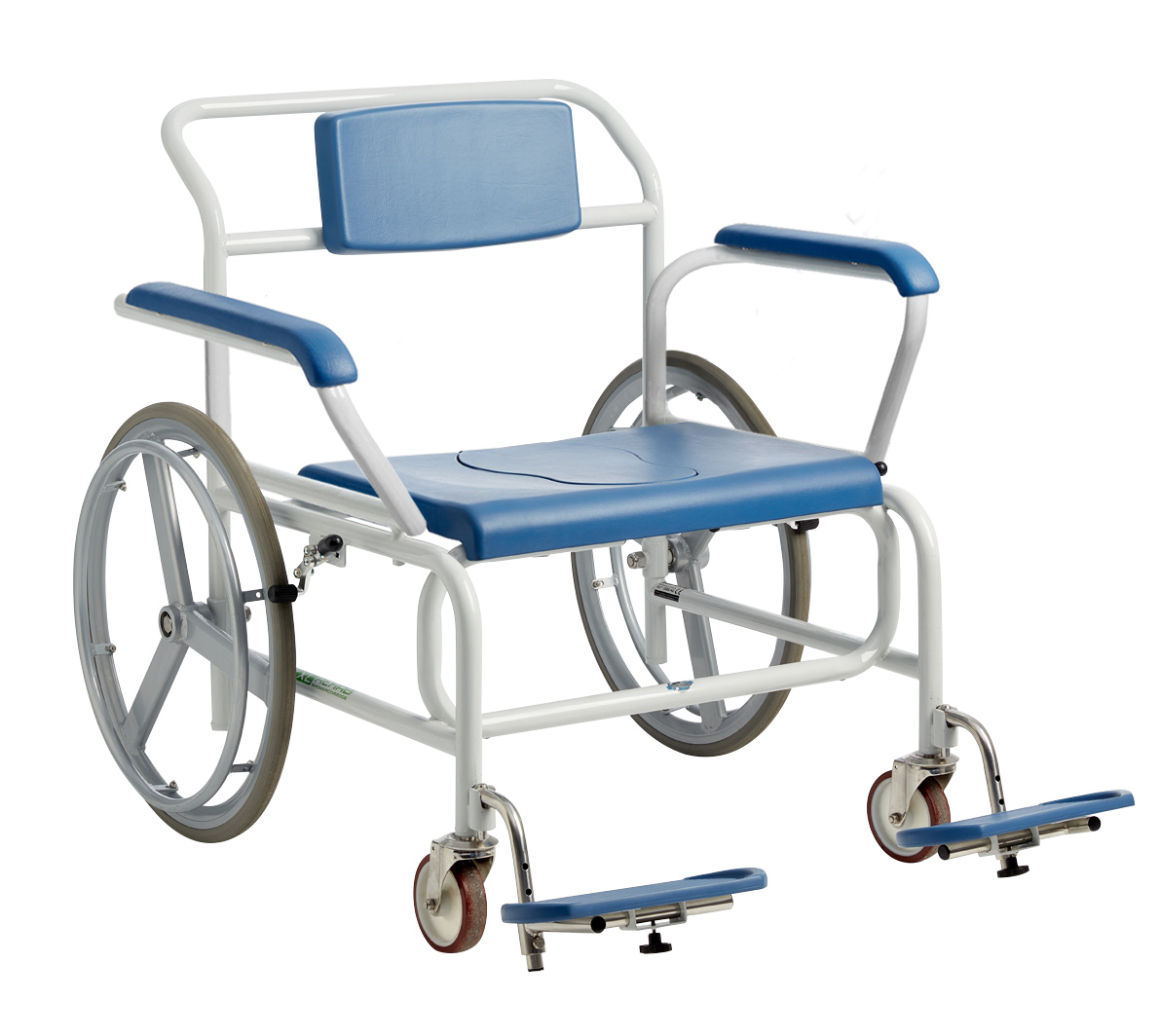

The ability for bariatric users to reach far back to reach the armrest is usually not present. Therefore our Bariatric Shower Commode Wheeler has extra-long armrests. The armrests measure 64 cm and stick out 7 cm from the seat base, thus supporting the hands of mobile users. It enables the user to get into the chair by him/herself. Another option is the butterfly armrests. Butterfly armrests add 14 cm to the seating width.

The space between backrest and seat has a clearance of 32 cm. This gives space for a possible bulbose gluteal region, but also enables the caregivers to reach for the sling and position the user better.

Maintenance and cleaning

The white frame components and the seat and armrests may be cleaned with water and a household detergent. To thoroughly clean the seat: unscrew the four screws under the seat and clean. Make sure to fasten the seat properly again.

See our other bariatric shower commodes under Shower And Toilet.

Find Shower Commode Wheeler on the Danish Assist Data.

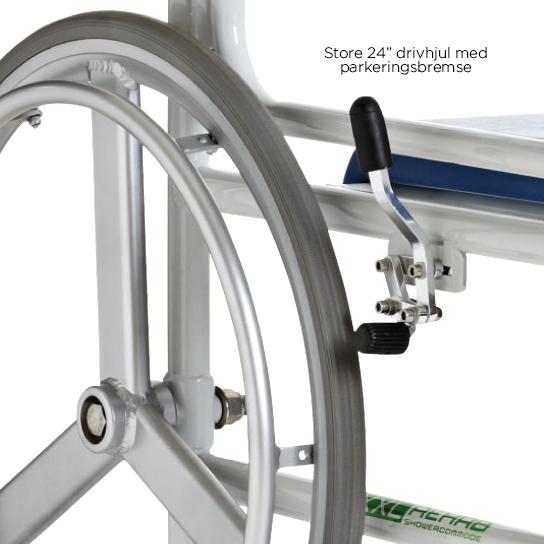

– Bariatric Shower Commode Wheeler with 24” rear wheels is easy to drive for the attendant

Specifications

Maximum weight capacity is325 kg
Seat width with standard armrests61 / 71 cm
Seat width with butterfly armrests61 / 71 cm (75 / 85 cm between armrests)
Total outer width with standard armrests (without footrests)81 / 91 cm
Total outer width with butterfly armrests (without footrests)87 / 97
Seat depht56 cm
Seat height55 cm
Seat to footrest40-42-44-46-48 cm
Width of footrest58-110 cm
Pushbar from floor100 cm
Width between armrests54 cm
Height of backrest48 cm
Height of footrests40-48 cm
Distance from floor to seat underside44.5 cm
Total length129 cm
Total weight33 kg
Front wheels125 mm
Rear wheels24”
SeatPressure moulded PUR foam
FramePowder-lacquered chromium molybdenum steel
ISO - classification09 12 03 24
IP-codeIPX4
Risk assessmentEN/ISO 14971:2012
General requirements and test methodsEN 12182

Ordering

ModelSeat width cmSeat depth cmOrder No
Shower commode wheeler incl. standard armrests, standard footrests and commode bucket61560152-061-000
Shower commode wheeler incl. standard armrests, standard footrests and commode bucket71560152-071-000
Shower commode wheeler incl. butterfly armrests, standard footrests and commode bucket61 (Butterfly armrests adds 14 cm to width between armrests)560153-061-000
Shower commode wheeler incl. butterfly armrests, standard footrests and commode bucket71 (Butterfly armrest adds 14 cm to width between armrests)560153-071-000

Accessories

AccessoriesOrder No
Butterfly armrests left (purchasing both armrests adds 14 cm to width between armrests) 0150-999-012L
Butterfly armrest right (purchasing both armrests adds 14 cm to width between armrests)0150-999-012R
Bedpan with cover0140-999-001
Standard footrest right0150-999-008
Standard footrest left0150-999-009
Full size seat for shower commode with bedpan and cover, 61 cm0150-999-022
Full size seat for shower commode with bedpan and cover, 71 cm0150-999-023
Calf support / amputation support right0156-999-030
Calf support / amputation support left0156-999-031

Download

Product info (PDF)
User manual (PDF)
Gebrauchsanleitung (PDF)
